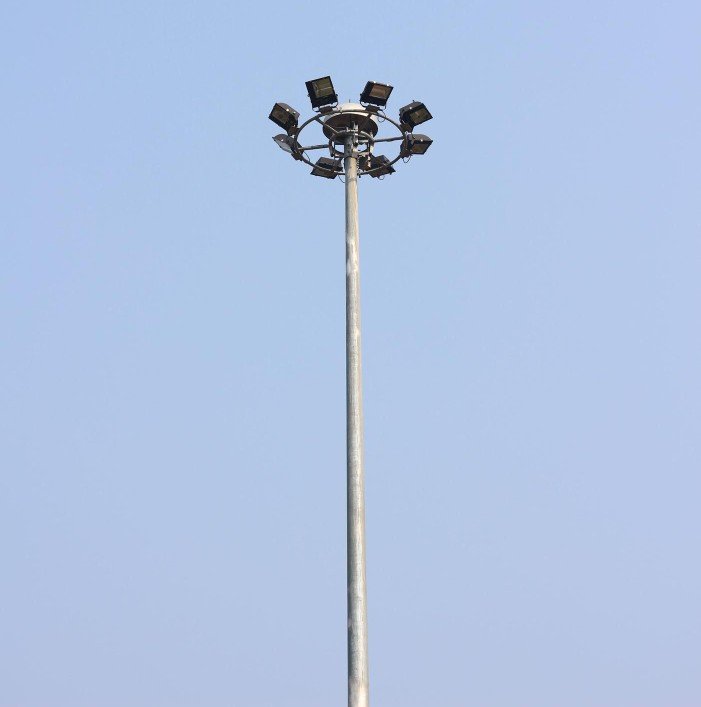

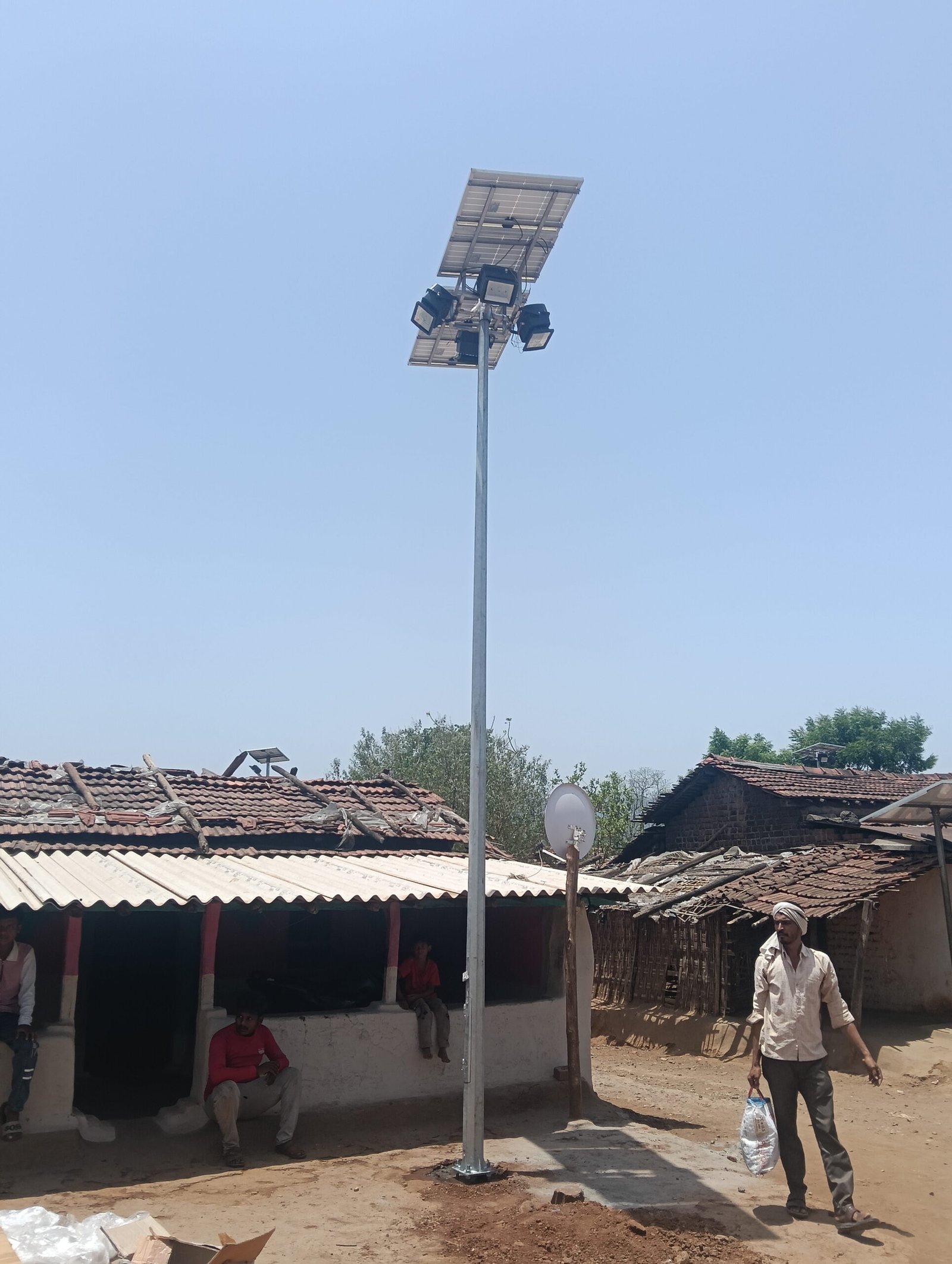

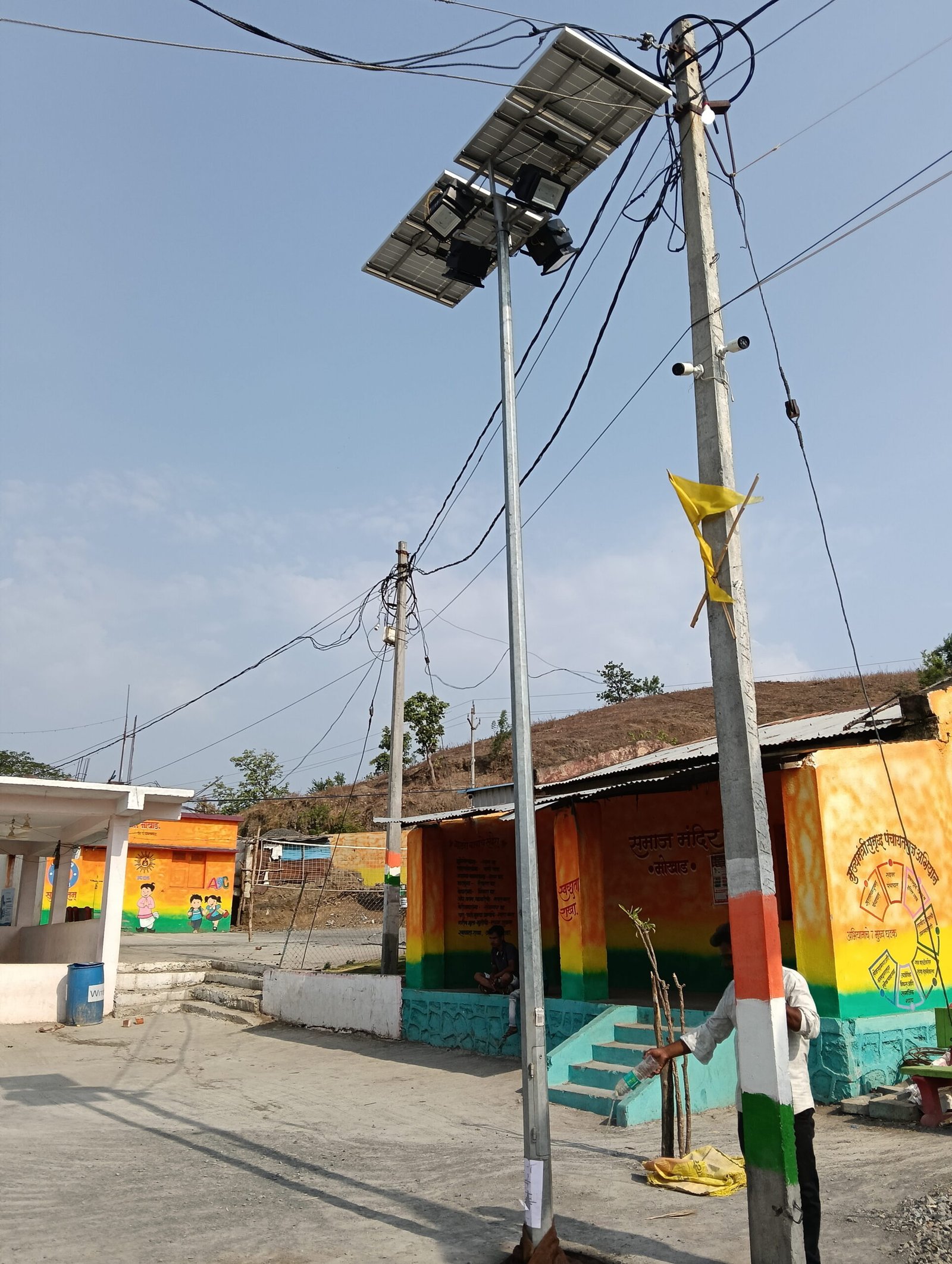

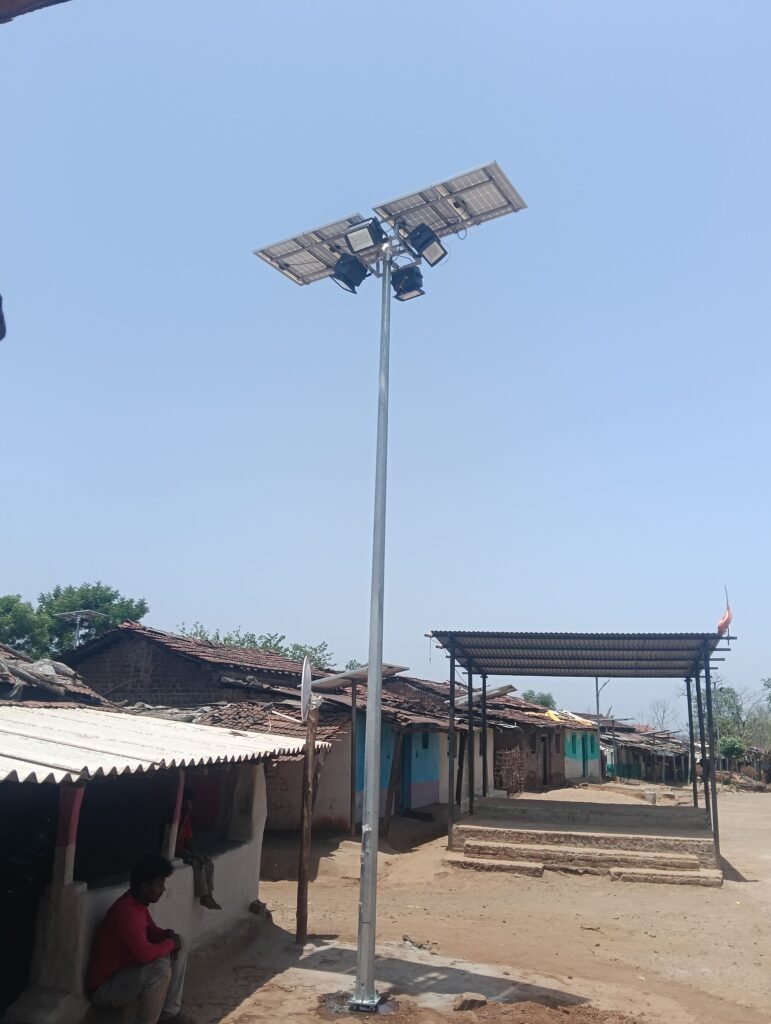

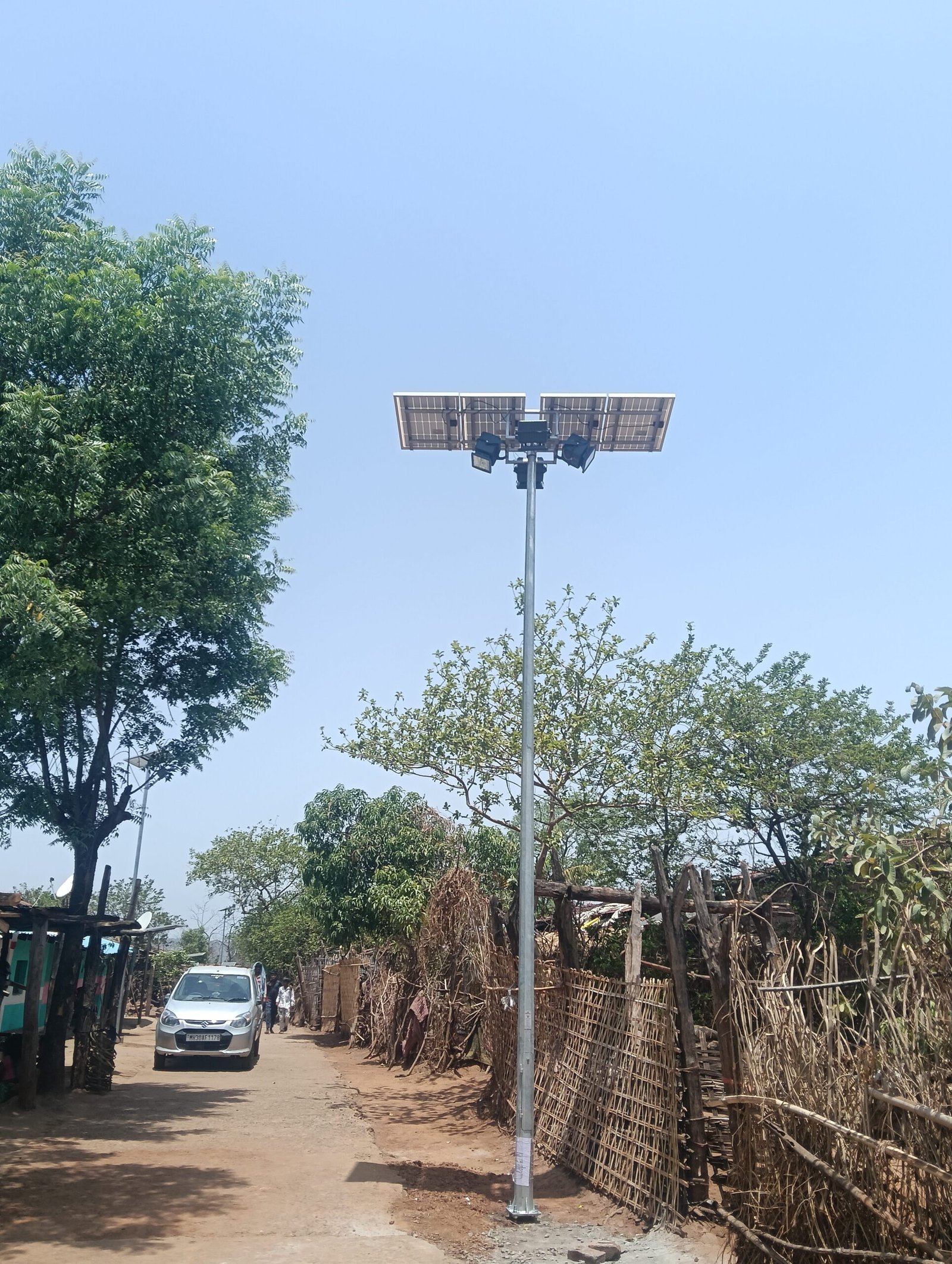

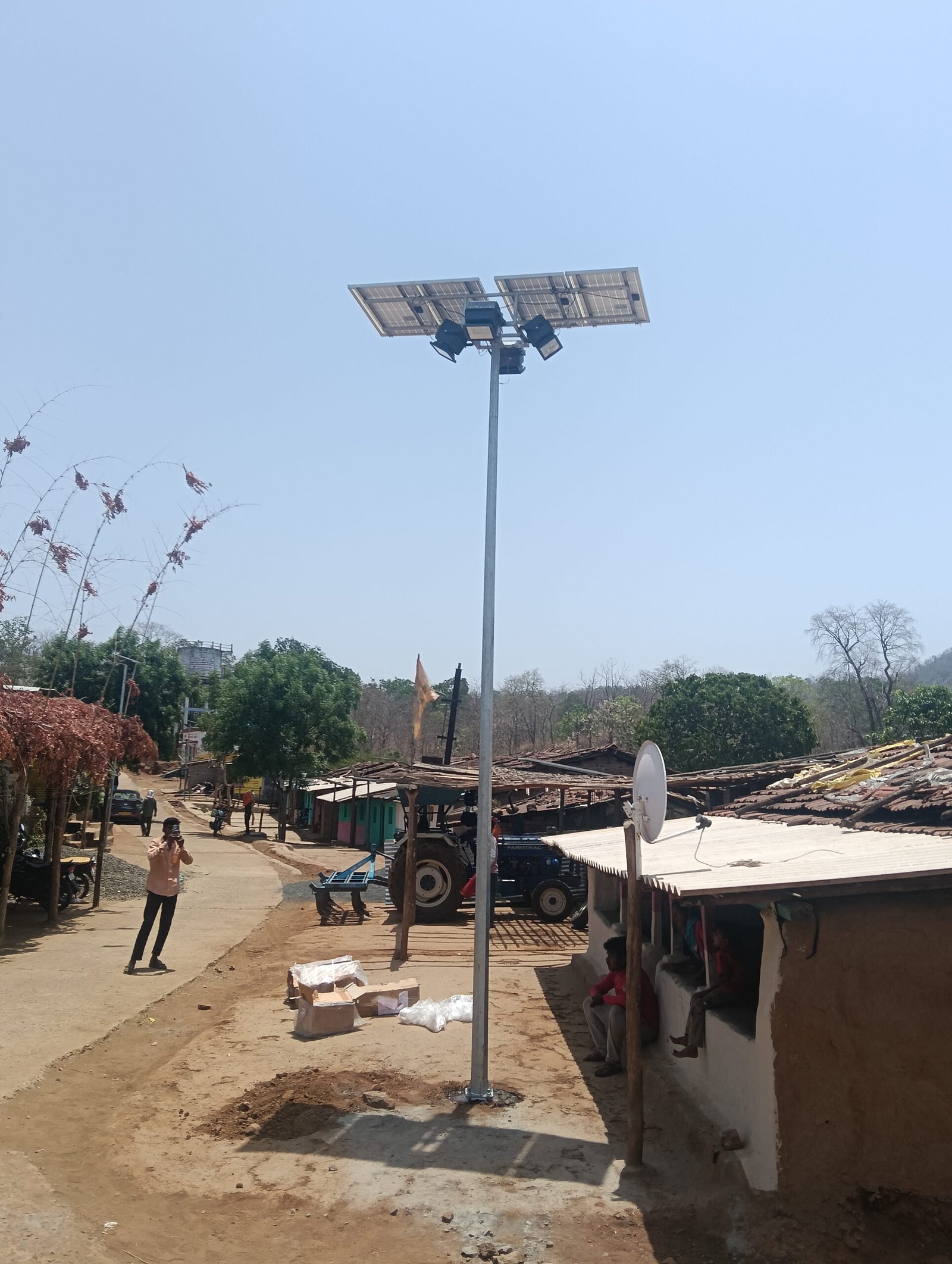

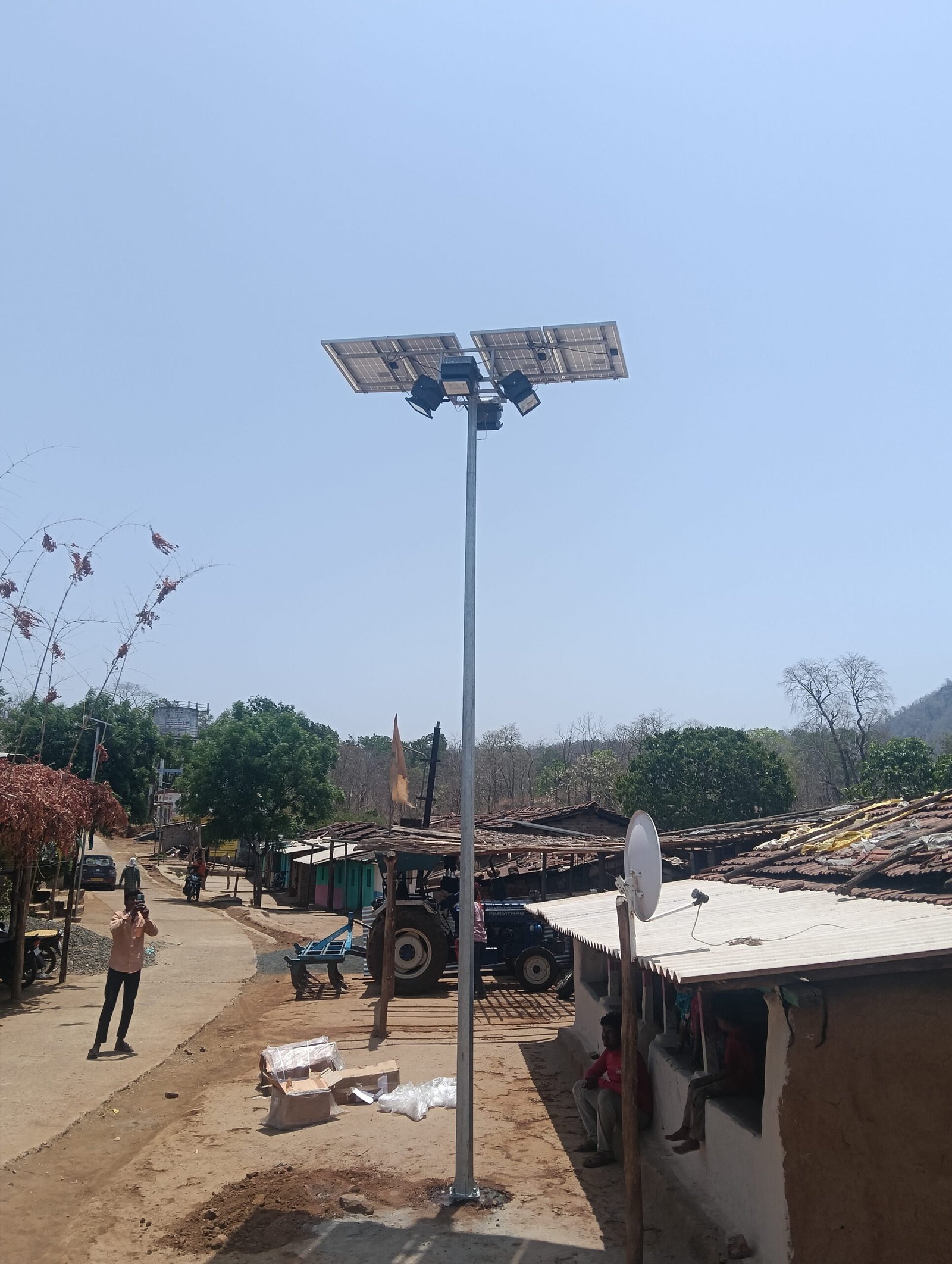

A solar high mast light is a large-scale outdoor lighting system mounted on a galvanised steel pole ranging from 6 metres to 30 metres in height, powered entirely by solar energy. It uses high-output LED modules (50W to 600W+) to illuminate wide areas highways, stadiums, industrial yards, ports, and toll plazas without any grid electricity connection.
Zitroen is a solar high mast light manufacturer based in Pune, Maharashtra, supplying systems for highways, industrial zones, and government infrastructure projects across India. Solutions are available in configurations ranging from compact 6-metre 100W installations to large-scale 30-metre highway-grade systems with outputs up to 600W.
A solar high mast lighting system uses renewable energy to deliver consistent brightness without relying on grid electricity.
This makes it not only cost-effective but also environmentally responsible. Whether you need lighting for safety, visibility, or operations, a solar high mast light solution ensures dependable performance even in remote locations.
By choosing a solar mast light, you aren’t just investing in visibility; you are choosing a sustainable, cost-effective, and low-maintenance solution.
A solar high mast lighting system consists of three core components: a tall galvanised steel or concrete pole (6m–30m), a solar power module (panels + batteries + MPPT controller mounted at or near the base or top of the pole), and a multi-lamp LED luminaire array at the top that throws high-intensity light across a wide radius.
Unlike standard street lights (5–8m), high mast lights are engineered for large-area blanket illumination; a single 20-metre system can replace 8–12 conventional street lights in a parking lot or interchange. According to MNRE data, solar high mast systems reduce lighting infrastructure costs by 60–70% over 10 years compared to grid-powered alternatives in remote and semi-urban locations.
When it comes to high mast solar street light technology, durability and performance are crucial. Our systems are engineered to combat against the elements while delivering maximum brightness.
Choosing a solar high mast light comes with multiple advantages. First, it significantly reduces electricity costs since it runs entirely on solar energy. It is also eco-friendly, helping reduce carbon emissions. Installation is easier in remote areas as no grid connection is required.
Additionally, these systems require minimal maintenance due to their durable design and long-lasting components. Whether you’re considering performance or sustainability, the solar high mast light price delivers excellent value over time.
| Feature | Specification Details |
|---|---|
| Pole Height | 6m / 9m / 12m / 15m / 20m / 25m / 30m (customisable) |
| LED Power | 50 Watt / 100 Watt / 150 Watt / 200 Watt / 250 Watt / 300 Watt / 350 Watt / 400 Watt / 500 Watt / 600 Watt+ Options |
| Luminous Output | 6,500 – 75,000+ lumens (configuration dependent) |
| Battery Backup | 1–3 nights (configuration dependent) |
| Wind Load Resistance | Up to 150 km/h |
| Solar Panel Type | High-Efficiency Mono/Poly-Crystalline |
| IP Rating | IP65 / IP66 |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) for Long Life |
| Controller | Intelligent MPPT with Dusk-to-Dawn Sensor |
| Material | Hot-Dip Galvanized Steel (Anti-Corrosive) |
| Autonomy | 2-3 Days (Backup during rainy weather) |
Kindly note:
| Pole Height | LED Wattage | Battery Backup | Approx. System Price |
|---|---|---|---|
| 6 Metres | 50W – 100W | 2–3 Nights | ₹45,000 – ₹80,000 |
| 9 Metres | 100W – 150W | 2–3 Nights | ₹80,000 – ₹1,30,000 |
| 12 Metres | 150W – 200W | 2 Nights | ₹1,20,000 – ₹1,90,000 |
| 15 Metres | 200W – 250W | 2 Nights | ₹1,70,000 – ₹2,50,000 |
| 20 Metres | 300W – 400W | 1–2 Nights | ₹2,50,000 – ₹3,50,000 |
| 25–30 Metres | 400W – 600W | 1–2 Nights | ₹3,20,000 – ₹5,00,000 |
| Parameter | Solar High Mast Light | Grid-Powered High Mast |
|---|---|---|
| Electricity Cost / Year | ₹0 | ₹18,000 – ₹60,000+ |
| Installation | No trenching needed | Requires cabling and trenching |
| Remote Area Viability | ✅ Fully Off-Grid | ❌ Grid Required |
| Carbon Footprint | Zero Operational Emissions | High |
| Typical Payback Period | 3–5 Years | N/A (Ongoing Cost) |
| 10-Year Total Cost | System Cost Only | System + ₹1.8L–₹6L Electricity Cost |
Step 1 – Determine the area to illuminate Calculate the square metreage of your site. A 12-metre pole with 200W covers approximately 2,500–3,000 sq m. A 20-metre pole with 300W covers 4,000–5,000 sq m.
Step 2 – Choose pole height based on application Use 6–9m for industrial yards and large parking areas. Use 12–15m for highway service areas and toll plazas. Use 20–30m for ports, stadiums, and major highway interchanges.
Step 3 – Specify battery backup requirement Standard: 1 night (12 hours). For critical infrastructure (ports, hospitals): 2–3 nights backup recommended. Battery bank size is calculated per your peak sunshine hours (Pune: 5.5 hours/day; Rajasthan: 6.5 hours/day).
Step 4 – Check ground conditions Foundation depth and type depends on soil bearing capacity. Zitroen provides foundation design drawings for each pole height on request.
Our engineering team provides free design consultation for orders of 5+ poles.
At Zitroen, we combine innovation with reliability. Our solar high mast light solutions are engineered to deliver maximum efficiency, durability, and performance. With a focus on quality, we ensure every product meets international standards and is tailored to suit diverse applications from highways to industrial complexes.
With a strong focus on quality, innovation, and customer support, Zitroen stands out as a trusted provider of high mast solar lighting systems across various industries.
Zitroen IoT Private Limited in Pune, Maharashtra designs and supplies solar high mast lighting systems for government, industrial, and infrastructure clients across India.
We are registered with the Ministry of Corporate Affairs (CIN available on request) and are MSME-registered under the Government of India’s Udyam scheme.

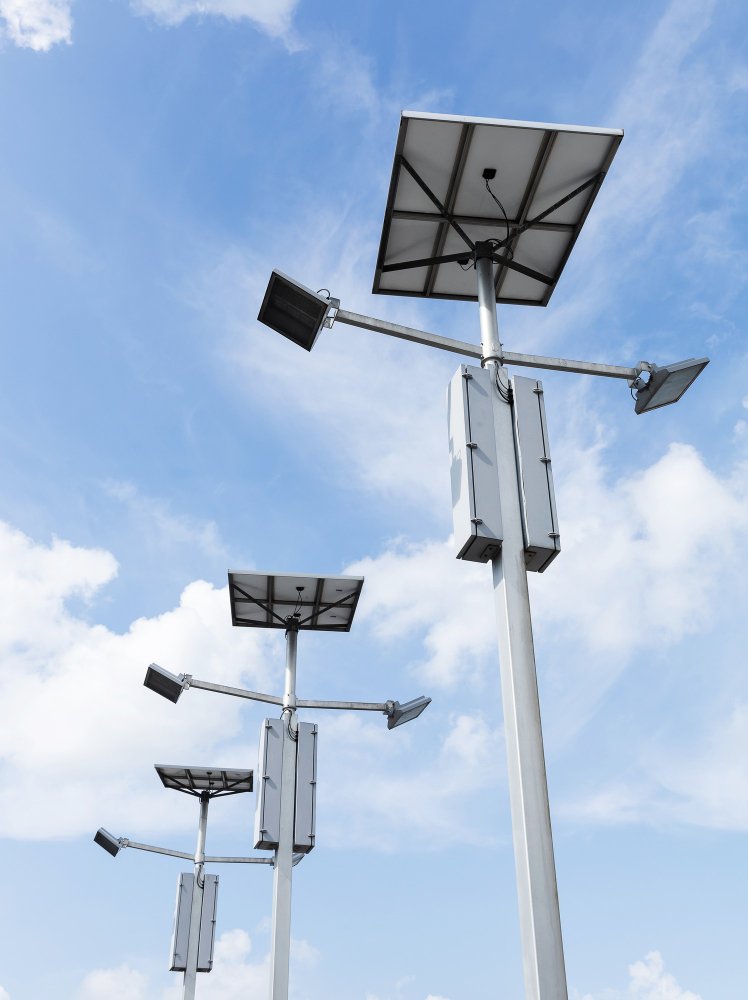

A semi-integrated solar street light features a separate solar panel with an integrated LED and battery unit, offering flexible installation and maximum solar charging efficiency.
